by Dobot · Collaborative Robot

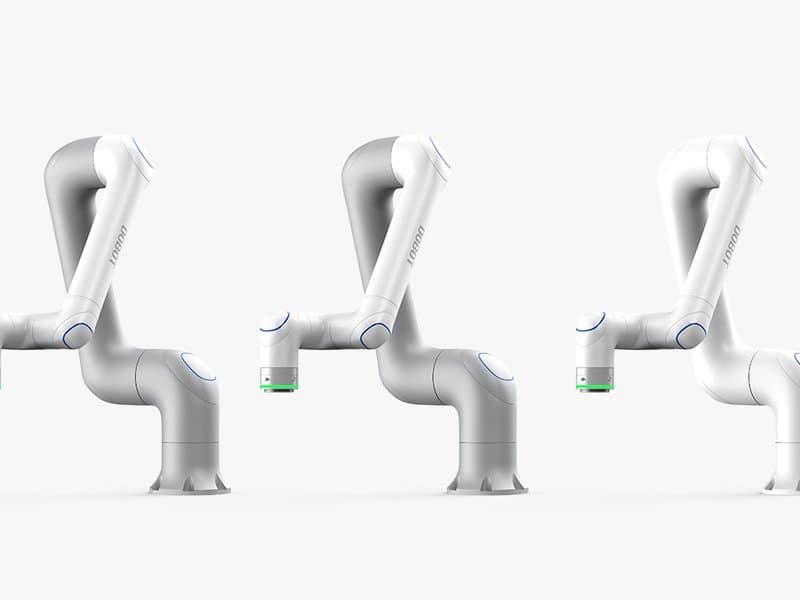

DOBOT Nova 2 is a catalogue entry associated with Dobot. Confirm the exact model, current configuration, specifications, availability, destination-market requirements and quotation with the manufacturer or an authorized seller. GrabaRobot has not independently tested this product.
| Manufacturer | Dobot / 越疆科技 |
|---|---|
| Category | Collaborative Robot |
| Official product page | Not recorded |
| Price | Request a current quotation |
| MOQ / lead time | Ask supplier |
| Weight | 1.3 kg (2.9 lbs) |
|---|---|
| Maximum Payload | 2 kg (4.4 lbs) |
| Working Radius | 625 mm (24.6 in) |
| Maximum Speed of TCP | 1.6 m/s (63 in/s) |
| Repeatability | ±0.05 mm |
| Range of Motion | ± 360° |
| J2 | ± 180° |
| J3 | ± 156° |
| J4 | ± 360° |
| J5 | ± 360° |
| J6 | ± 360° |
| Maximum Joint Speed | 135 ° /s |
| J4/J5/J6 | 135 ° /s |
| End IO | 2 inputs |
| DO | 8 outputs（NPN or PNP） |
| RS485 | Supported |
| IP Rating | IP20 |
| Noise | 65 dB(A) |
| Temperature Range | 0° to 50° C |
| Installation Orientation | Any angle |
| Power Consumption | 100W |
| Maximum | 250W |
| Cable Length from Robot to Controller | 3 m (118.1 in) |
| Materials | Aluminum alloy, acrylonitrile butadiene Styrene plastic |
| Dimensions | 200 mm x 120 mm x 55 mm ( 7.9 in x 4.7 in x 2.2 in) |
| Input Power | 30~60V DC |
| IO Power | 24V, Max 2A, Max 0.5A for each channel |
| IO Interface | 8 inputs（NPN or PNP） |
| AI | 2 inputs, voltage mode, 0~10V |
| AO | 2 outputs, voltage mode, 0~10V |
| Remote Power On/Off | Supported |
| Communication Interface | 2, for TCP/IP and Modbus TCP communication |
| USB | 2, for connecting USB wireless module |
| 485 Interface | 1, for RS485 and Modbus RTU communication |
| Environment | 0° to 50° C |
| Humidity | ≤95%, non-condensation |
| Cooling Mode | Passive heat dissipation |
| Teaching Mode | PC、APP（Android、iOS） |
No official source URL and source-check date are both recorded for this product. Specifications are catalogue data. Confirm the exact configuration, documents, price, MOQ, lead time and support terms with the manufacturer before purchase.
